30-20905a-10

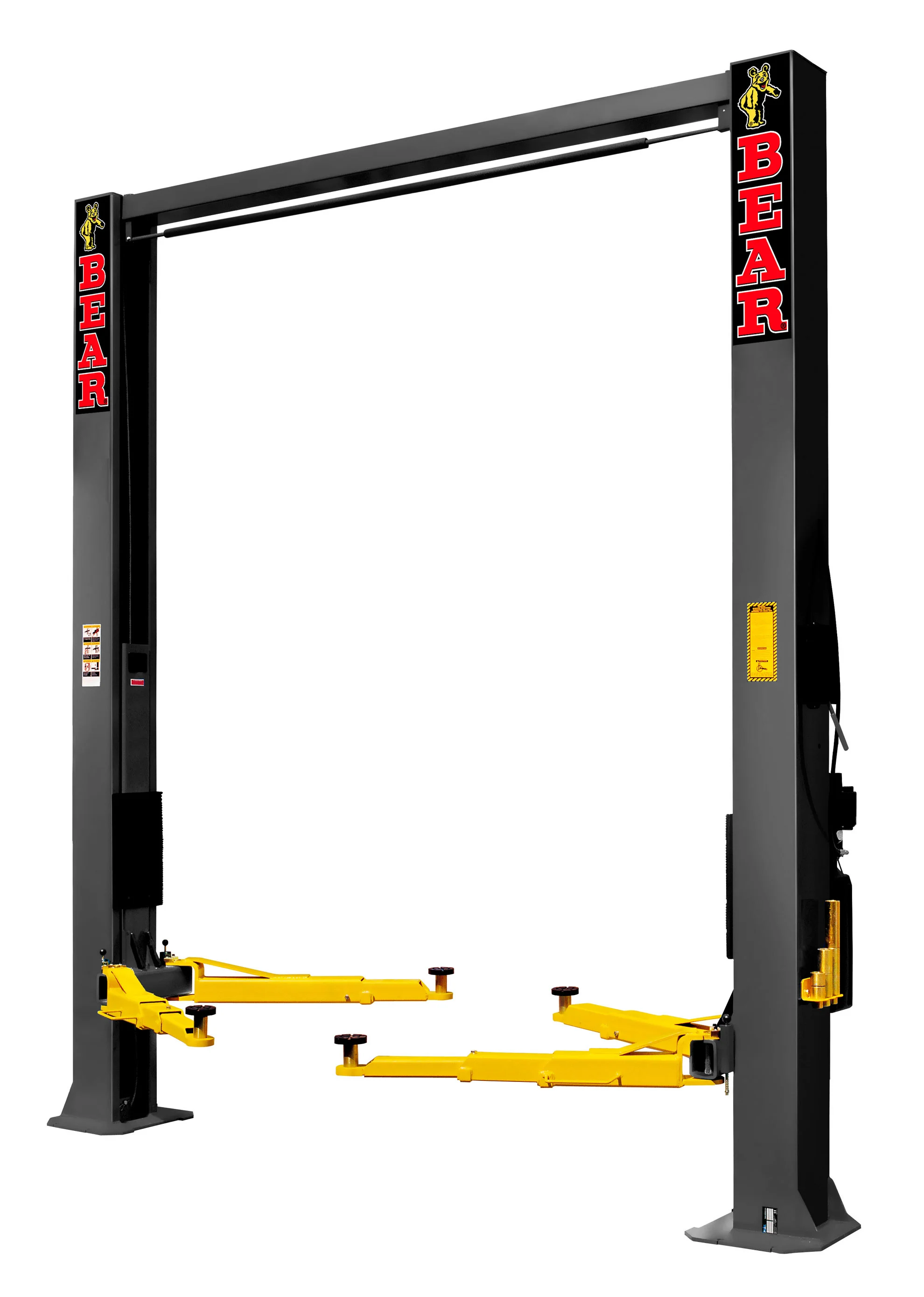

10,000lb CLEAR FLOOR
220V/60HZ - 1 PH

Our deluxe 10,000 pound model 2 Post will leave you worry free.  This model has a dual symmetrical / asymmetrical design and is equipped to handle any passenger vehicle that comes to your shop.

  • Dual hydraulic direct-drive cylinders,designed and made on ANSI standard. High quality NOK seals.
  • 3/8” aircraft quality cable is used for synchronization
  • Self-lubricating UHMW Polyethylene sliders and bronze bushings.
  • Single-point safety release and dual safety design
  • Clear floor design
  • Overhead safety shut-off device
  • Super-symmetric arm design makes it easy to find the vehicles lift point
  • Automatic arm restraints
  • Stackable adapters 1.5”, 2.5”, 5” as standard.

Also available: 30-20905A-20 - 220V/50Hz - 1 ph


CALL 866-550-1134
 FOR MORE INFORMATION
customerservice@cartek.com

30-20905A PERFORMANCE SPECIFICATIONS
LIFTING CAPACITY 10,000lbs (4.5T)
LIFTING TIME
60 seconds
LIFTING HEIGHT
76 3/8" - 85 3/8" / 1940-2169mm
OVERALL HEIGHT
151 3/4" / 3854mm
OVERALL WIDTH
138 3/8" / 3516mm
DRIVE-THRU CLEARANCE
100 3/4" / 2560mm
WIDTH BETWEEN COLUMNS
112 1/4" / 2850mm
MINIMUM PAD HEIGHT
4 1/8" / 115mm
GROSS WEIGHT
1,679 lbs / 762kg
MOTOR 2.0 / 3.0 hp


European Models
SS 350  3.5 ton capacity.
SS 450  4.5 ton capacity.
European lifts dimensions may vary.
