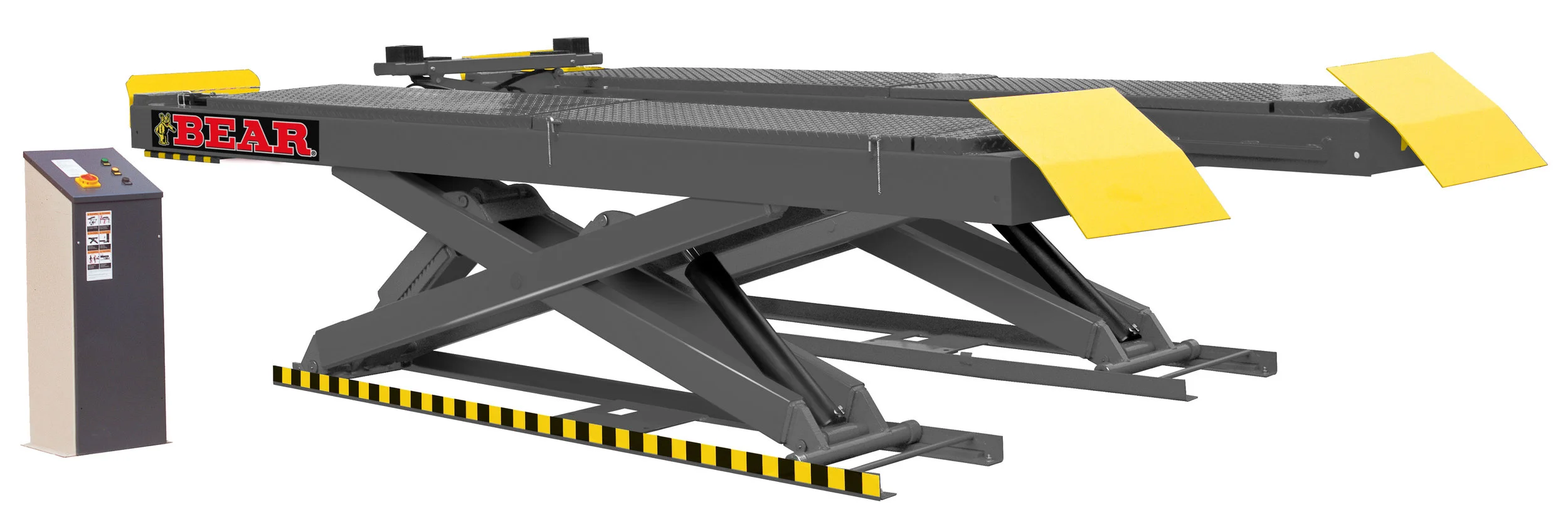

30-SS1203A-10
12,000lb - 220V/60Hz - 3 ph

  • Includes separate Platform with control panel
  • High quality Cylinders with NOK seals - ANSI Standard
  • 2-dual synchronous cylinders are applied to assure the lifting level on both platforms.
  • Electro-air control system safety self-lock mechanism
  • Skid proof diamond plate runway
  • Heavy duty design uses 6” x 3” / 150 x 75 mm tube for strength and to assure the runways remain level during working.
  • Suitable for Bear Robotics Alignment System
  • Rear tie bar is optional for Robotics system.
  • Access ramps are included
  • Suitable for “In-Floor” installation
  • Includes a heavy duty high quality hydraulic pump with solenoid valve and mechanical level valves
  • Optional Jack and Turnplate

Also available: 30-SS1203A-20 - 220V/50Hz - 1 ph

CALL 866-550-1134
 FOR MORE INFORMATION
customerservice@cartek.com



30-SS1203A PERFORMANCE SPECIFICATIONS
LIFTING CAPACITY 12,000lbs (5.5T)
LIFTING TIME
58 seconds
LIFTING HEIGHT
73 5/8” / 1870mm
MINIMUM HEIGHT
11 3/4” / 300mm
RUNWAY LENGTH
197 1/2” / 5018mm
OVERALL WIDTH
90 1/8” / 2290mm
RUNWAY WIDTH
24 5/8” / 625mm
OVERALL LENGTH INCL. RAMPS
258" / 6554mm
GROSS WEIGHT
5,326 lbs / 2416Kg
MOTOR 4.0 hp

European Model:

SS55 - 5.5 ton capacity scissor wheel alignment lift.

European lifts dimensions may vary.
